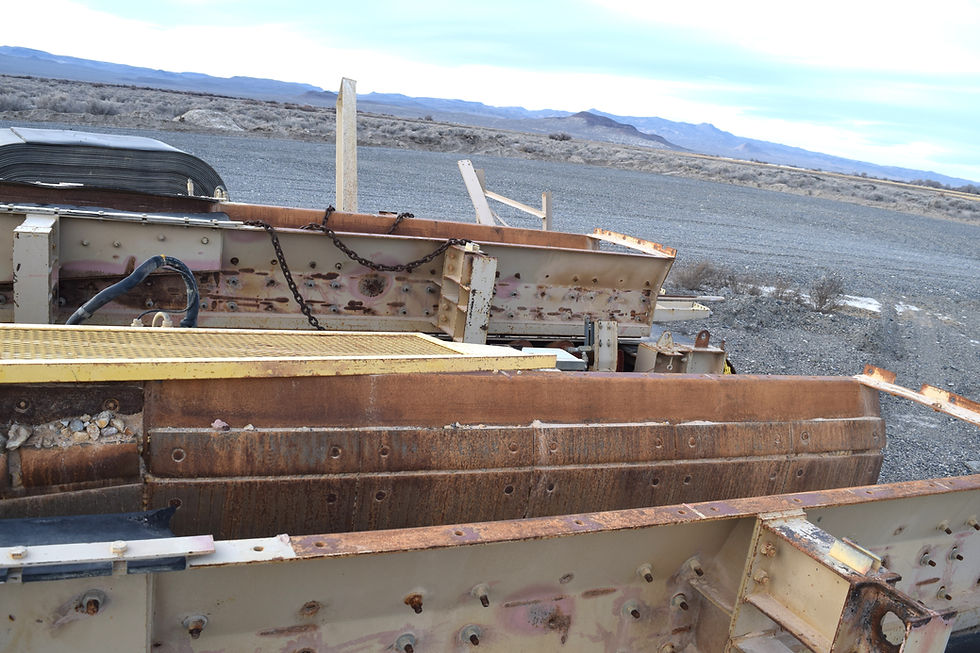

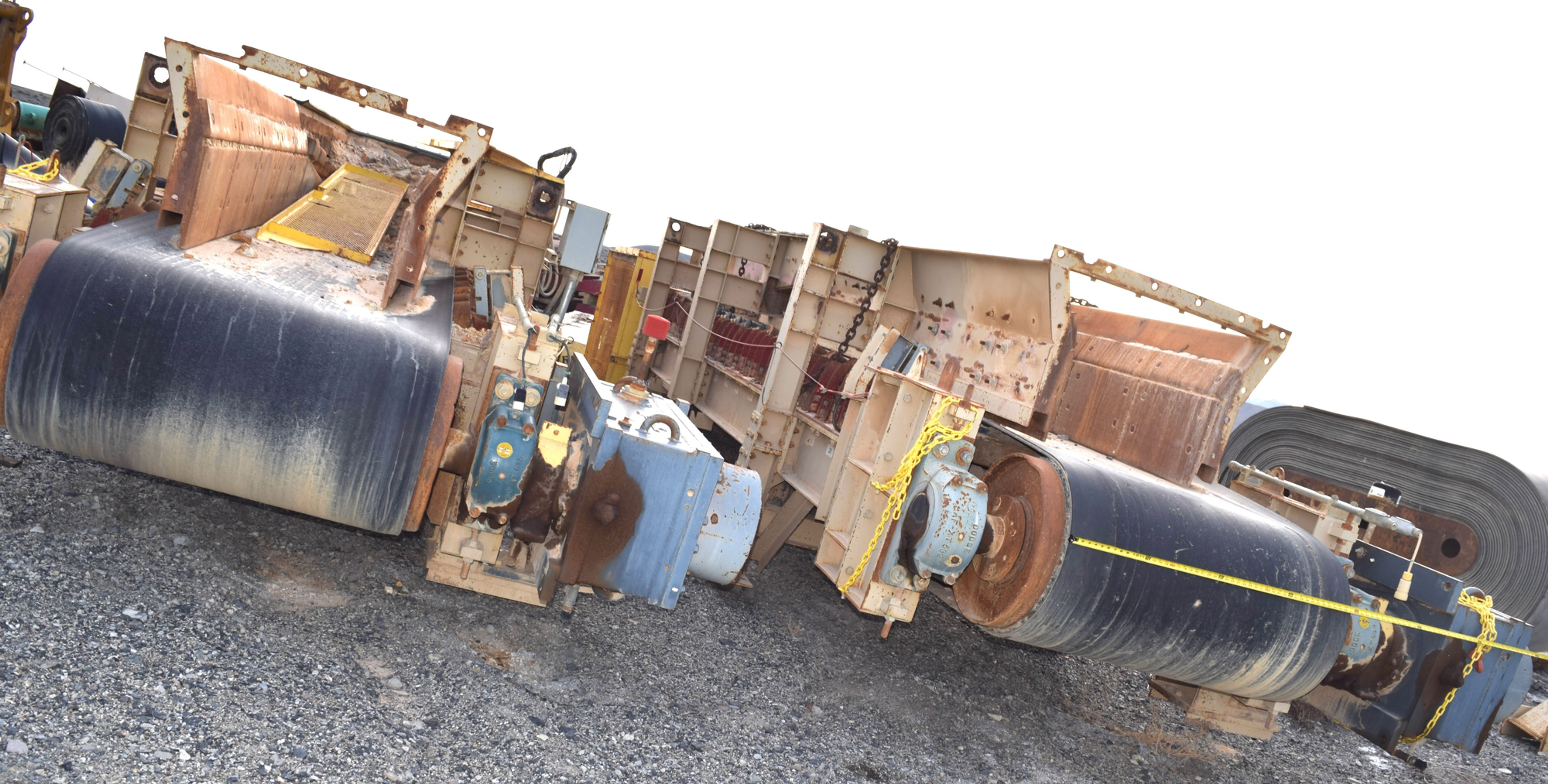

TWO FEEDER CONVEYORS ARE AVAILABLE
OVERALL LENGTH: 30FT 7INCHES,
OVERALL WIDTH: 9FT 9 INCHES,
SHAFT CENTER TO CENTER LENGTH: 27FT 4 INCHES,
HEAD SPOOL- RUBBER ATTACHED LAG,
APPROX.: WEIGHT 14,000 LBS. EACH,
MOTOR SIZE: 15HP, 208-240/460V.
FALK RENEW GEAR REDUCER:
MODEL: 405ABRJ4-C
A/O 4114050,
M.O  03-066555,
SHAFT: 6” DIAMETER,
RATIO: 221.3
INPUT RPM: 1750
OUTPUT RPM: 7.91,
SERVICE FACTOR 2.4,

WE HAVE SEVERAL PIECES OF MINING EQUIPMENT THAT ARE STORED IN OUR YARDS: (7) SCREENS, BALL MILLS: (2) METSO & (2) KVS, WILLIAMS ROLLER MILLS DF-64: (3) WILLIAMS #40 ROLLER MILLS WITH WHIZZERS / SPINNER SEPARATORS, WILLIAMS #40 NF IMPACT CRUSHER/DRYER MILL 60” & TURBINE SEPARATOR, DRUM DRYERS, (3) APRON FEEDERS , (5) RADIAL STACKERS & SCALES, SEVERAL OTHER CONVEYORS: BLET TYPE, APRON FEEDER TYPE, SCREEW AUGERS, BUCKET ELEVATORS, VIBRATING CONVEYORS AND CHAIN CONVEYORS.
MODULAR TRUCK DUMP & HOPPER, OTHER SUPORT EQUIPMENT AVAILABLE AND ARE DISMANTLED & STORED IN THE STORGE YARD AND READY TO LOAD ONTO TRUCKS AT NO COST!!
CONTACT US FOR A FREIGHT RATE.
