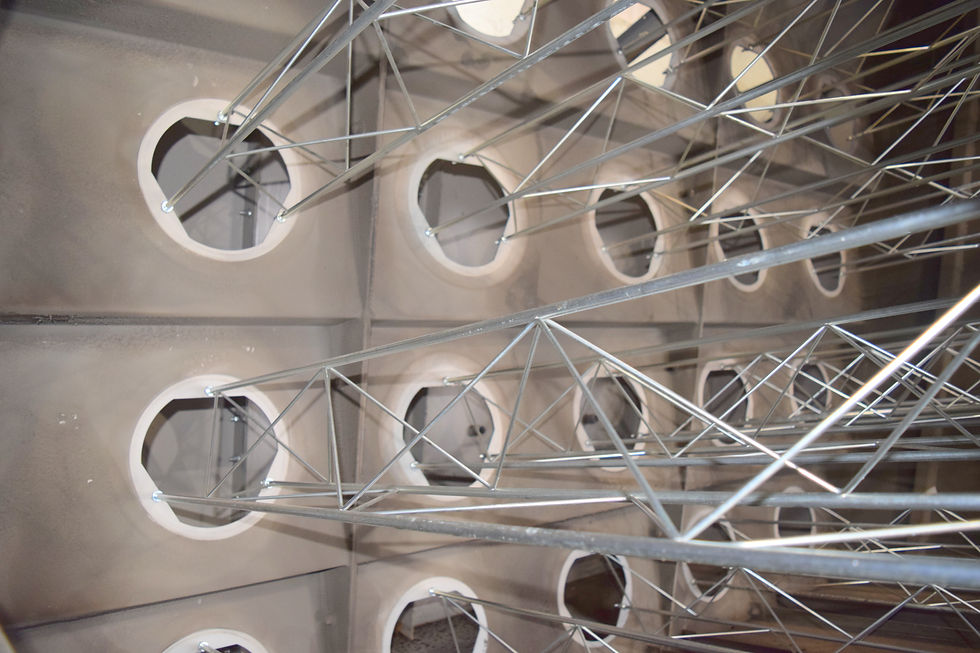

Pulse-jet cleaning of the 48 cartridge filters

Filter media area: square feet 12,190+-

60 HP New York Blower fan,  30” X 44” discharge, inlet 48”+-

NYB Fan: Size 40 ACF,  ( can provide video of fan running)

Fan description: ACF/PLR, class I-III, Shop# NO3726 100,

47” +- diameter Fan inlet and blow pipe

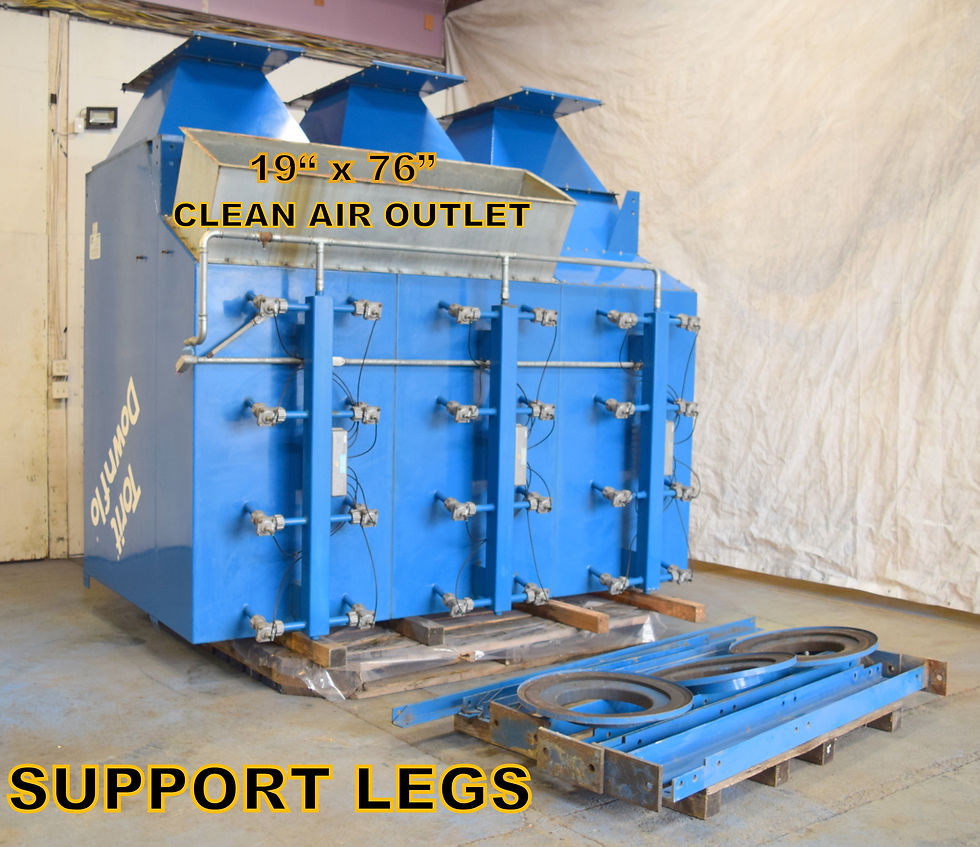

Clean air outlet on dust collector:  size: 19” x 76”+-

3 bottom discharge collection hoppers with slide gates and drum lids

Serial# IG496524-001

Support legs have been unbolted & removed and are included

Additional photos available

Contact us for a price and a freight rate

The Dismantling Contractor is available to re-install this dust collector at your location

Other dust collectors are available.

Donaldson Torit DFT 4-48 cartridge dust collector,60 hp fan, pulse-jet cleaning
