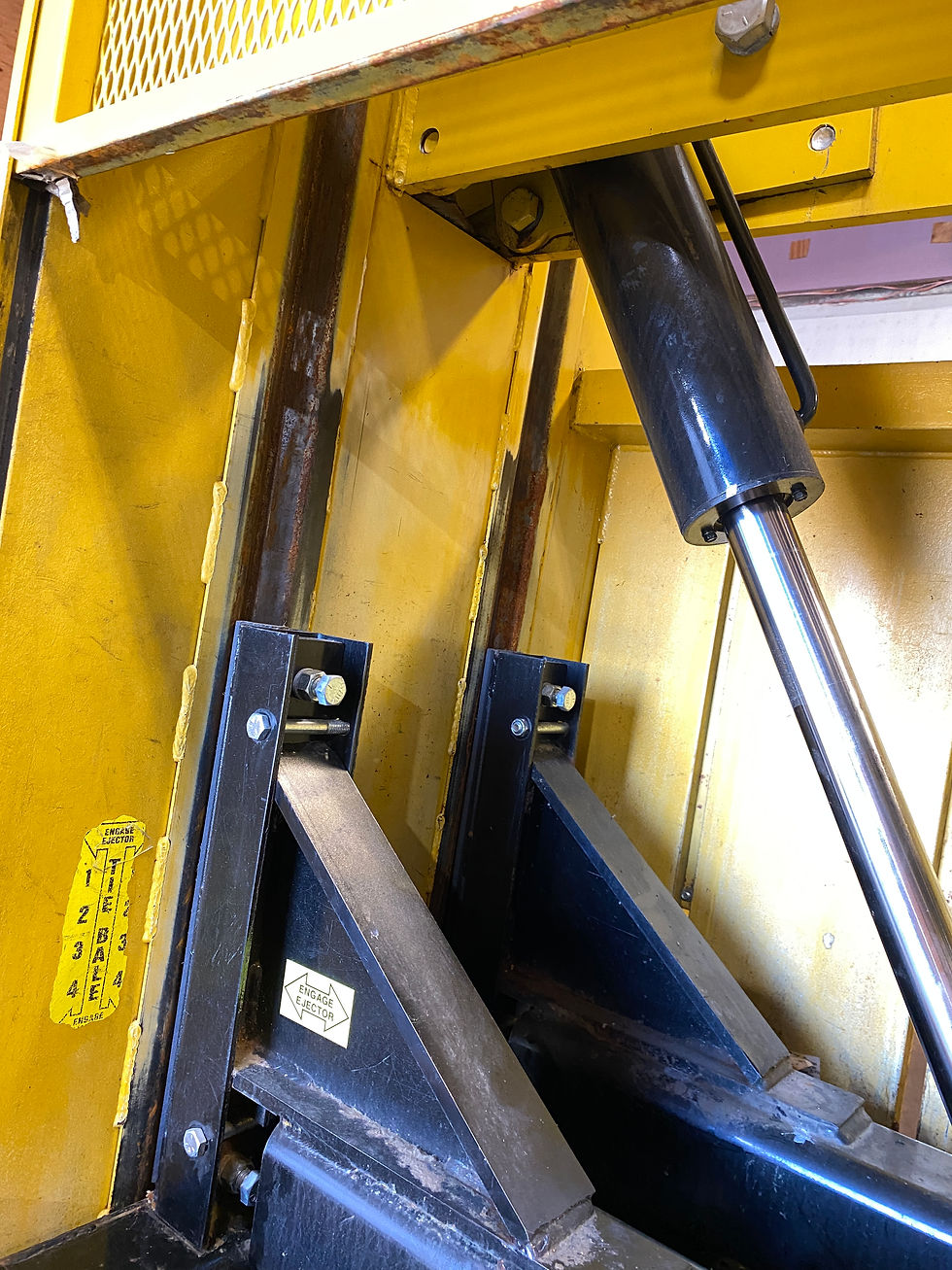

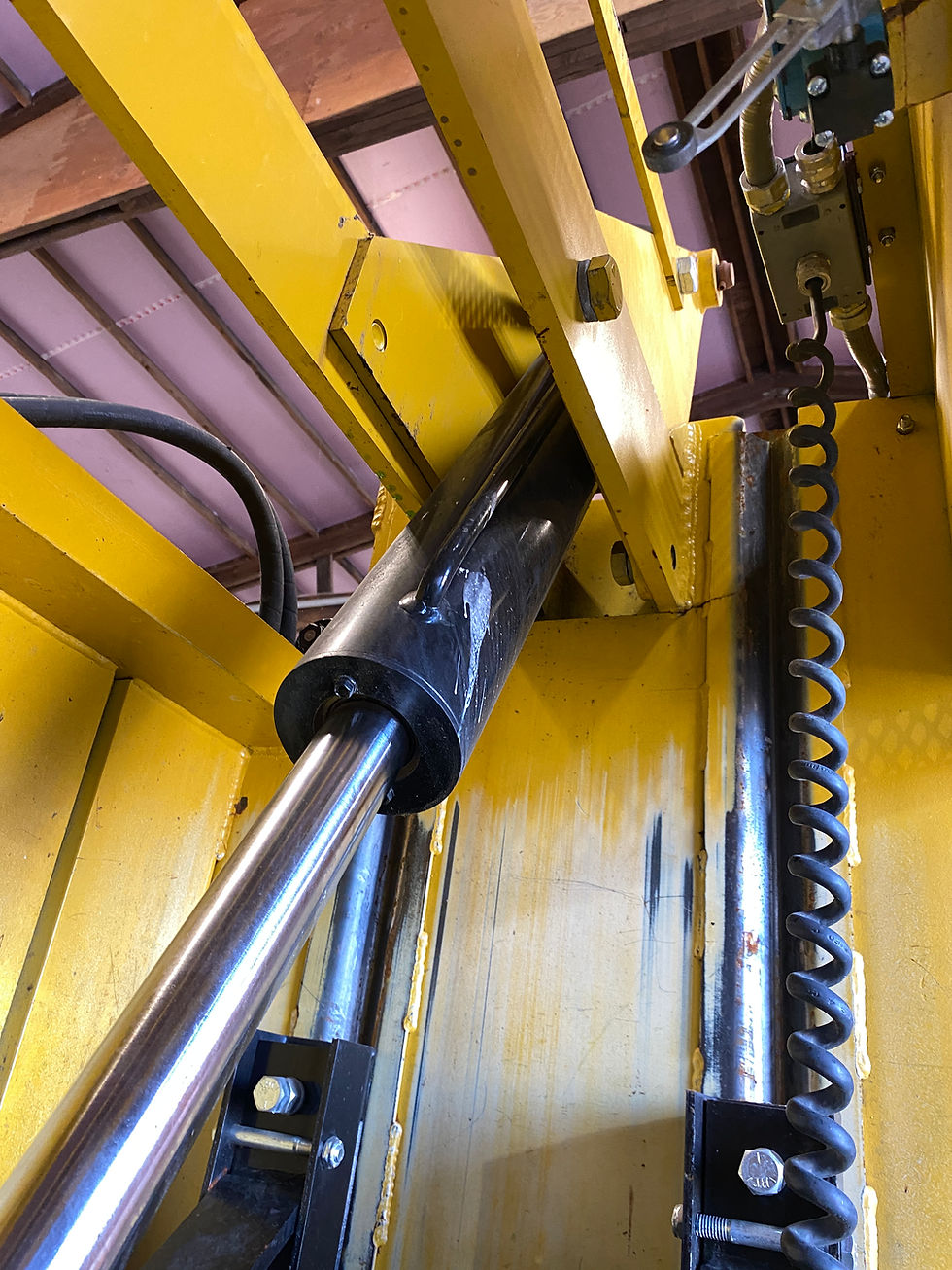

Harmony M60MD Vertical Baler low profile 8ft tall
Operates under an 8 ft ceiling height 95 ¾”
Made In USA.
5 hp
The door has been re-painted June 2021
Serial# 1989
Product Specs
Bale Size: 30″ x 60″ x up to 30″ High (762 mm x 1524 mm up to 762 mm)
Estimated Bale Weight (Corrugated Cardboard): 700-800 lbs. (318-363 kg)
System Pressure: 2,300 PSI
Ram Force: 57,805 lbs. (26,220 kg)
Cycle Time: 33 seconds
Cylinder: Twin 4″ bore (102 mm) 32″ stroke (813 mm)
Motor: 5 HP – 3450 RPM
Pump: Two-stage
Electrical Power: 208/230/460V, 3 Phase, 60 Hz
Bale Eject: Hydraulic
Bale Tying: Wire twine, strapping
Dimensions
Loading Door Opening: 24″ x 60″ (610 mm x 1,524 mm)
Unloading Door Height: 39″ (990 mm)
Operating Height: 95.75″ (2,430 mm)
Overall Depth: 37″ (940 mm)
Overall Width: 78″ (1,980 mm)
Depth with Door Open: 73″ (1,854 mm)
Shipping Height: 81.5″ (2,070 mm)
Shipping Weight: 4,237 lbs. (1,922 kg)
Required Operating Area: 39.5 sq. ft. (3.7 sq. meters)
