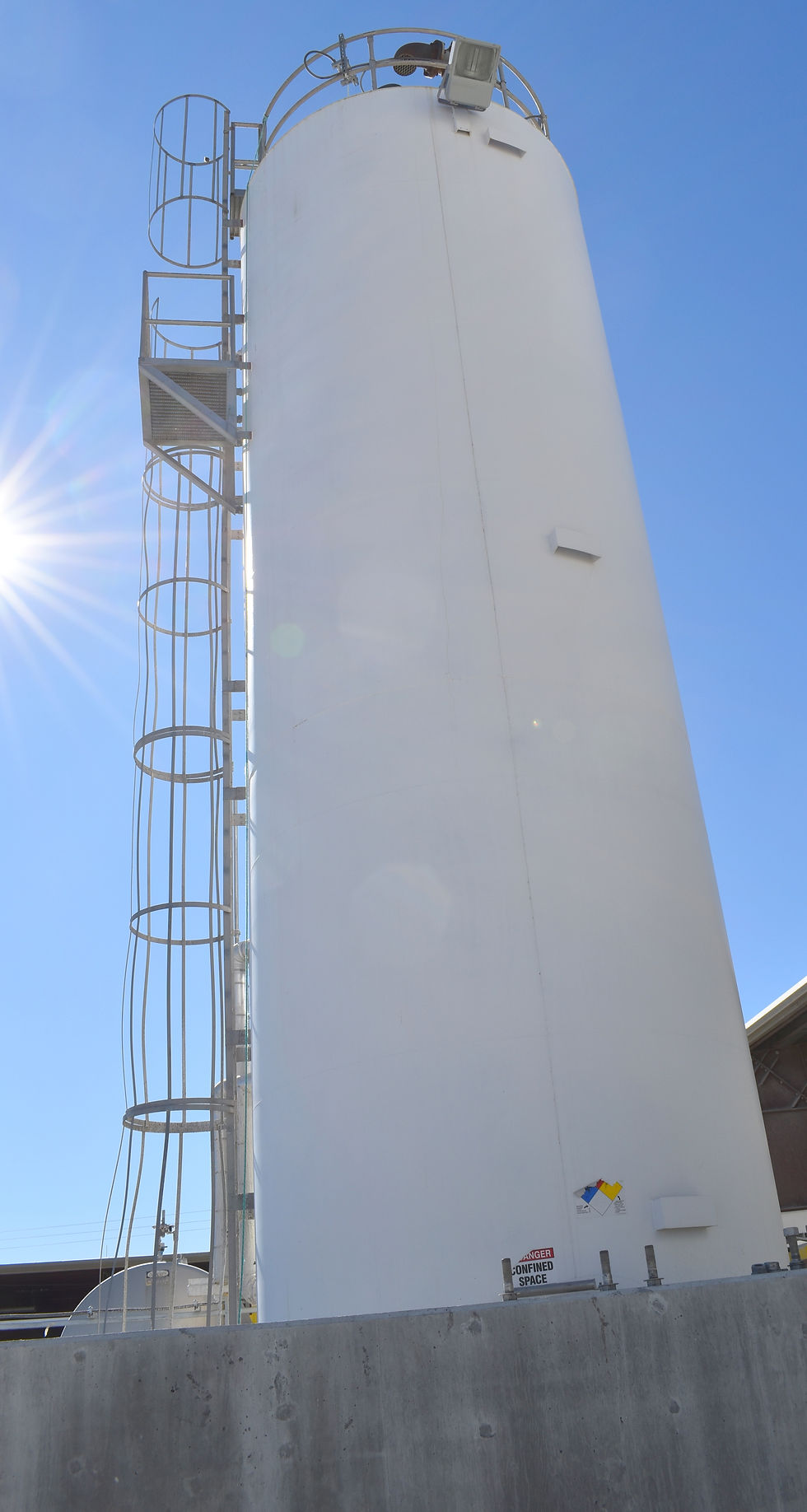

Stainless steel insulated Silo,  20,000 gallon vertical stainless insulated Silo. Heat Transfer dimple jacket.

JBF Stainless

Silo/tank has been removed and is stored in yard

no charge for loading

Horizontal 24” – 3-Blade turbine agitator, 3HP, 89 RPM.

Dimple sidewall

Heat Transfer dimple jacket

Prior use was industrial ( NOT FOOD GRADE)

Manufactured date: December 2013

Heat Transfer ASME code  “UM” Stamped:  Pressure: 150 PSIG, Max. Temp: 200 F., Min Temp.: -20 F, Transfer Media Volume: 13 Gallons.,

Heat Transfer Jacket: Dimple Sidewall:  SA-240, SS 304, 18 GA (0.048”) Media: (2) zones- 240 SQ. FT total

Diameter: 120” I.D.

Length:  strait side 35 ft.

Empty weight approx. 19,500 LBS.

p.o.# 2012219-006

quote# J0801-13-1 REV 1

Silo tank has a dent/damage near the bottom outside area( view photos and call for details)

Silo/tank has been removed and is stored in yard

no charge for loading

contact us for a delivered price to your location

Additional tanks available
